1250mm Horizontal V Cutting Machine Gantry Sheet Metal Grooving Machine

Name: 1250mm Horizontal V Cutting Machine Gantry Sheet Metal Grooving Machine
Brand: SUBIERUI
Price: 1 USD

Quality 1250mm Horizontal V Cutting Machine Gantry Sheet Metal Grooving Machine for sale

Brand Name : SUBIERUI

Model Number : 1250*4000

Certification : ISO9001 CE

Place of Origin : Wuxi China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Delivery Time : 5-30 Working days

Packaging Details : Waterproof packaging

Supply Ability : 25 sets per mouth

Colour : Blue and white; Customizable

Voltage : 380V/50HZ,customized

Speed : 0-120m/min

Machinable length : 4000mm

Machinable width : 1250mm

Clamping system : Hydraulic

Contact Now

Horizontal(Gantry) V Grooving Machine For Stainless Steel Decoration

Description:
The materials to be processed by GSHM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1250	mm
2	Max. Length of metal sheet		4000	mm
3	Max. thickness(Stainless steel)		5	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		8	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of the X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y1 axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X axis	5.5	kW
13	Motor power	Y1.Y2.Z axis	1.0	kW
14	Overall dimension	Length	5900	mm
		Width	2000
		Height	1550

Application:

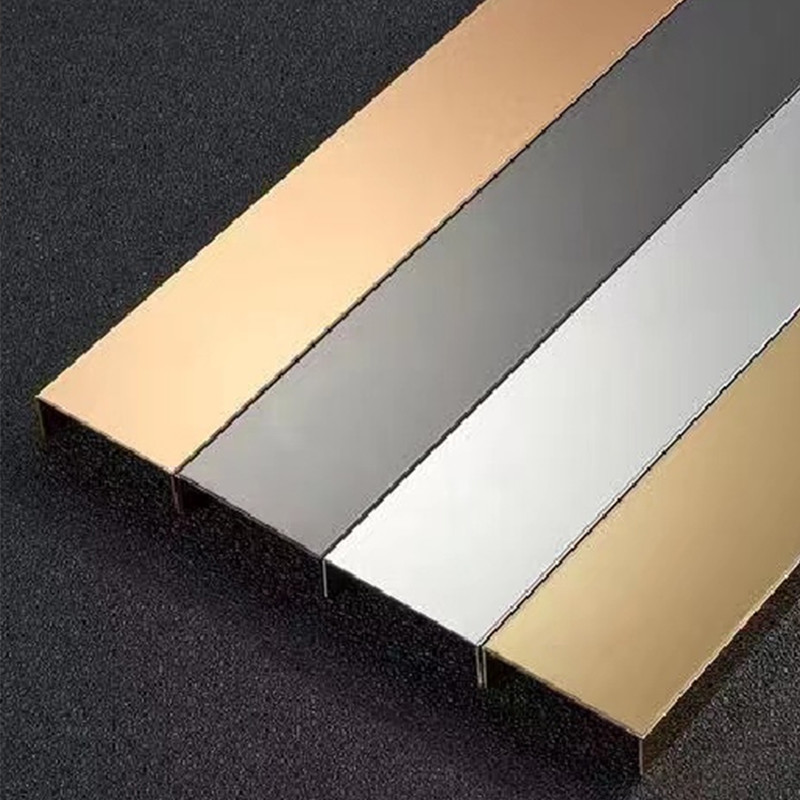

Architectural decoration, bathroom, kitchen utensils, door industry, elevator equipment, advertising signs, equipment covers, aluminum curtain wall, precision parts, hardware products, automobile manufacturing, mechanical equipment, electrical equipment, aluminum and copper products, etc.
